Locate Your Jack

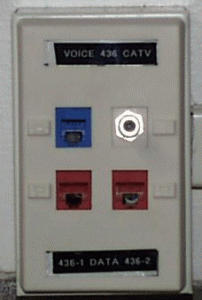

Standard Jack -

This jack is used in Allegheny Hall, Brooks, Caflish, Crawford, Delta Tau Delta(DTD), Edwards, Ravine, SAE, Schultz, Walker, Walker Annex and the College owned houses

Description:

  • The phone jack is the top left blue jack
  • the cable-TV jack (cable-TV is not provided by the College in college owned houses) is the round jack beside it.
  • The two bottom red jacks are your network jacks. If you are the first person in the room connecting a computer then plug into the jack on the left and your roommate can use the jack on the right.

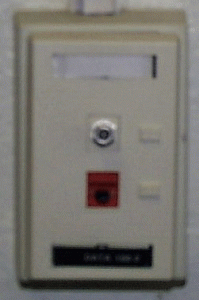

Baldwin Style Jack

This jack is used only in Baldwin Hall.

Description

  • The jacks in Baldwin are on the opposite sides of the room.
  • The cable-TV jack is the round jack located at the top
  • the data jack is the red jack located at the bottom.
  • Your telephone jack looks like your telephone jack at home.
  • There is also a data jack located below the phone jack.

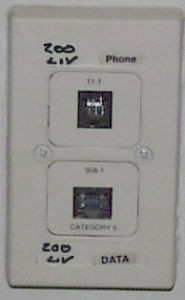

College Court Style Jack

Description:

  • The telephone jack is the top jack (Phone)
  • the network jack is the bottom jack (DATA).
  • The cable-TV jack looks like a regular round cable-TV (co-axial cable) jack.
  • Some rooms have jacks with two data ports.
  • If you have two data ports then plug into the jack on the right.

Phi Kappa Psi Style Jack

Description:

  • The words “CATAGORY 5″ are written below the jack in red.
  • Your telephone jack looks like the telephone jack you have at home
  • The cable-TV jack looks like a regular round cable-TV (co-axial cable) jack.
  • The jacks in PKP are on opposite sides of the room.
